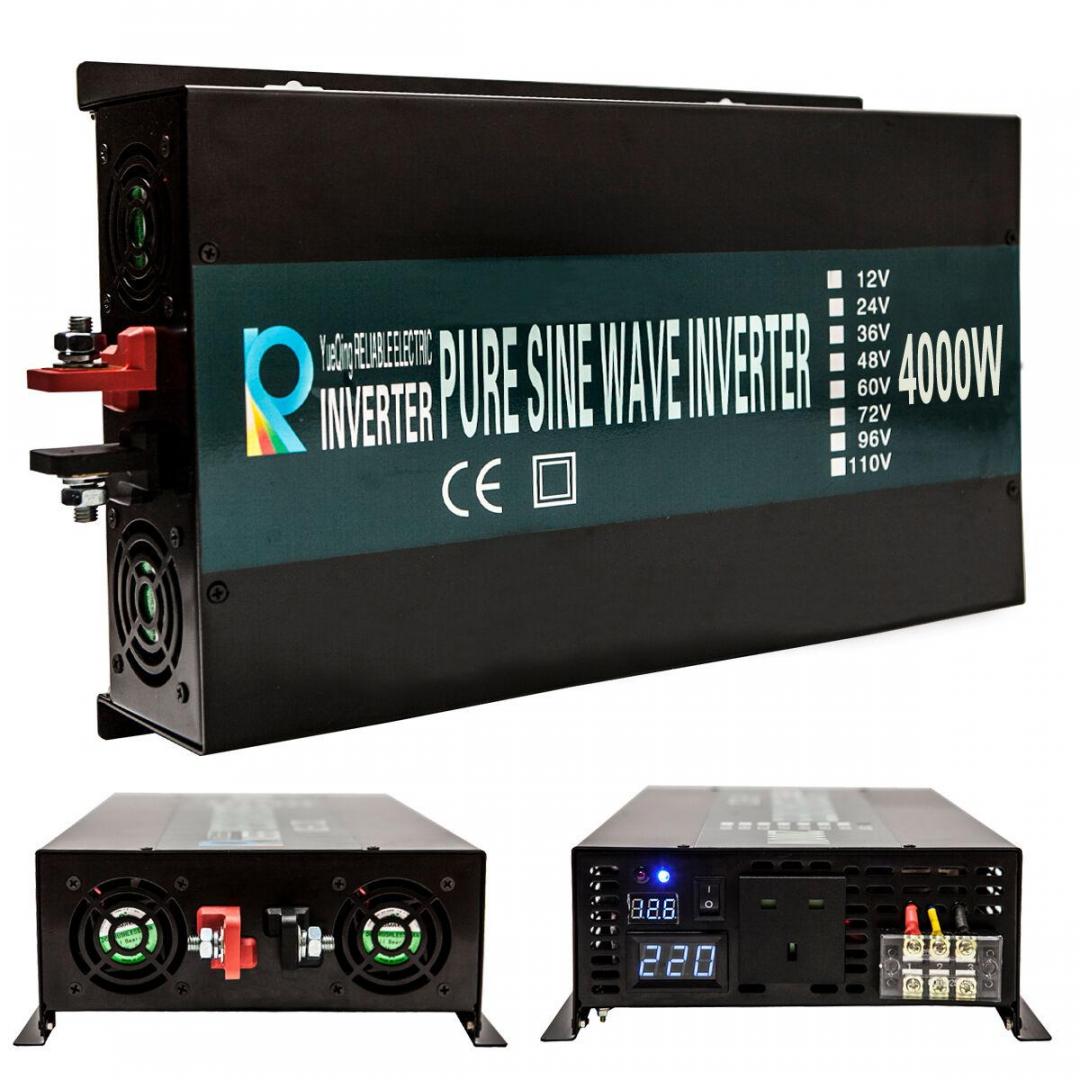

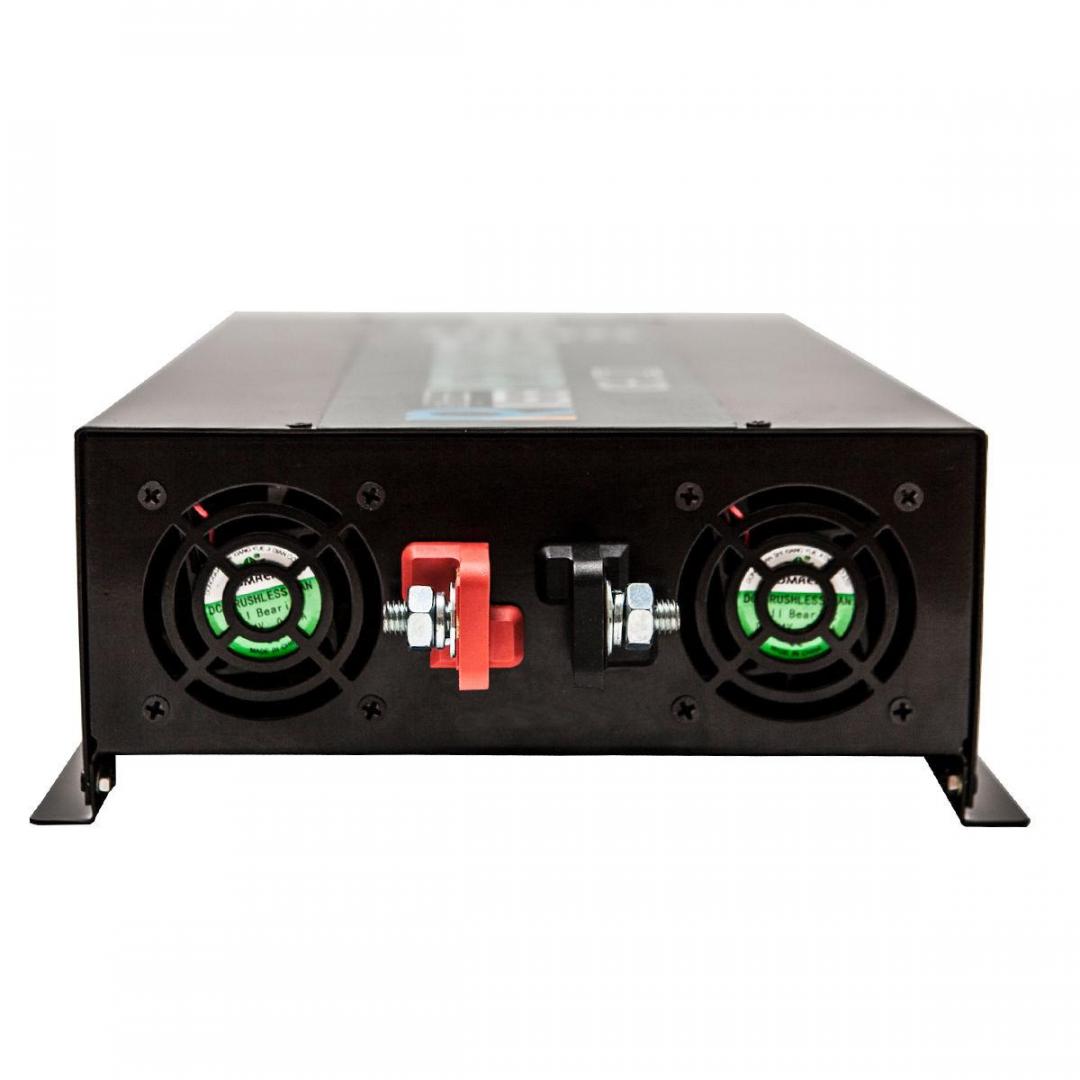

Specifications:

DC Voltage 12V or 24V or 48V

Voltage Range 10-15VDC or 21-30VDC or 42-60VDC

NO Load Current Draw 1.6A

Efficiency >90%

DC Connector Cables With Clips or Car Adaptor

AC Voltage 100/110/120VAC or 220/230/240VAC

Continuous Power 4000W

Surge Power 8000W

Waveform Pure Sine Wave

Frequency 50HZ or 60Hz

AC Regulation 3%

Low Voltage Alarm 10DC±0.5V or 20.5DC±1V or 44VDC±1V

Low Voltage Shut Down 9.5DC±0.5V or 19.5DC±1V or 42VDC±1V

Over Load Shut Off Output

Over Voltage Shut Down 15.5V or 30.5V or 61.2V

Over Thermal Shut Off Output Automatically

Fuses Short Circuit

Working Temperature Between -10centi and +50centi

Working Humidity 20%~90%RH non-condensing

Storage Temperature Between -30centi and +70centi

Start Soft Start

Cooling Ways Cooling Fan

Total Harmonic Distortion THD 5%

Machine Size(mm) 460*207*93mm

Packing Size(mm) 628*340*210mm

Net Weight(kgs) 8.5kgs

Gross Weight(kgs) 10kgs

Packing Type Carton Packing
