Product name

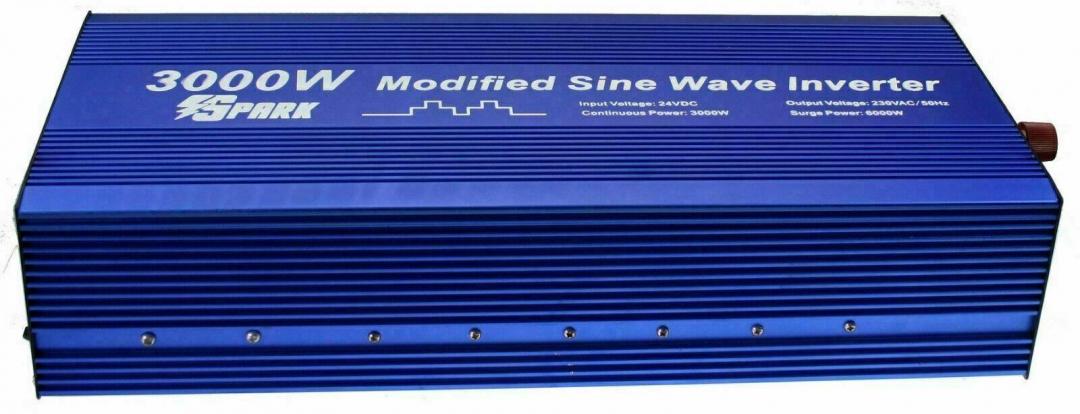

3000w digital display power inverter

Continuous Power

3000W

Max power

3100W

Peak Power

6000W

Output Waveform

Modified Sine Wave

Efficiency(full load)

85%

Input Voltage

DC24V

Input Voltage regulation

 DC20-30V

No load current

1.0 (dependant on battery voltage)

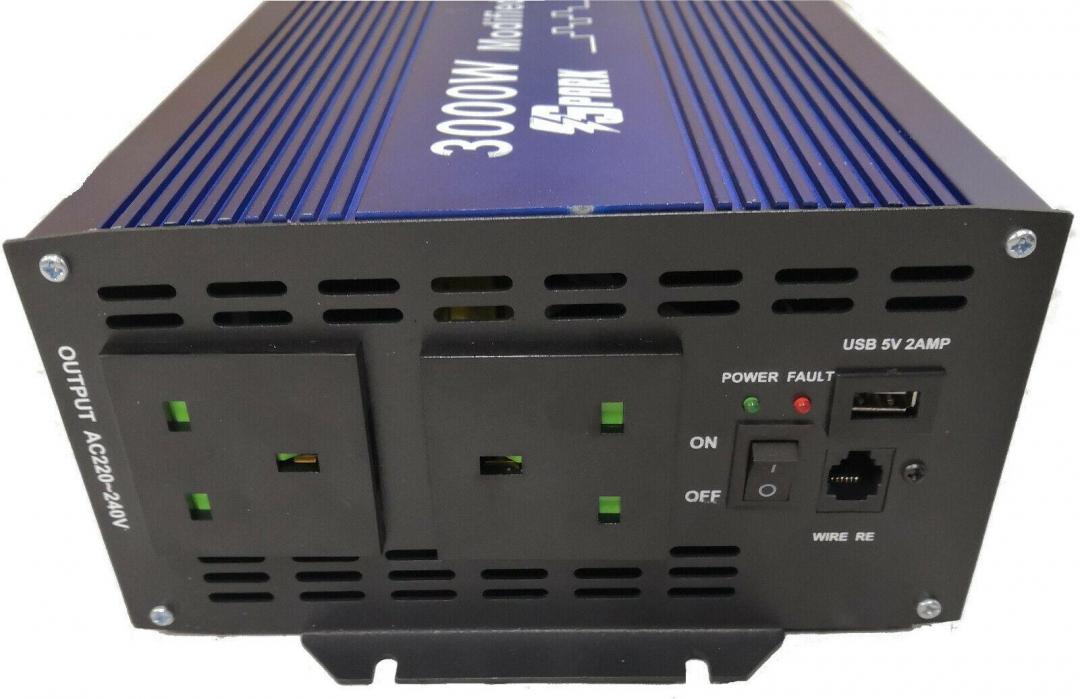

Output Voltage

220-240VAC

Output Frequency

50Hz±2Hz

Fuse(s)

160A of Blade fuse internal

Protections

Overload shut off : 3100W

Low voltage shut off

(battery low): 19.6-20.0VDC

Output short: automatically shut off

Over temperature shut off: 65-70 Celsius degree

DC5V USB

NO

Soft start technology

Yes

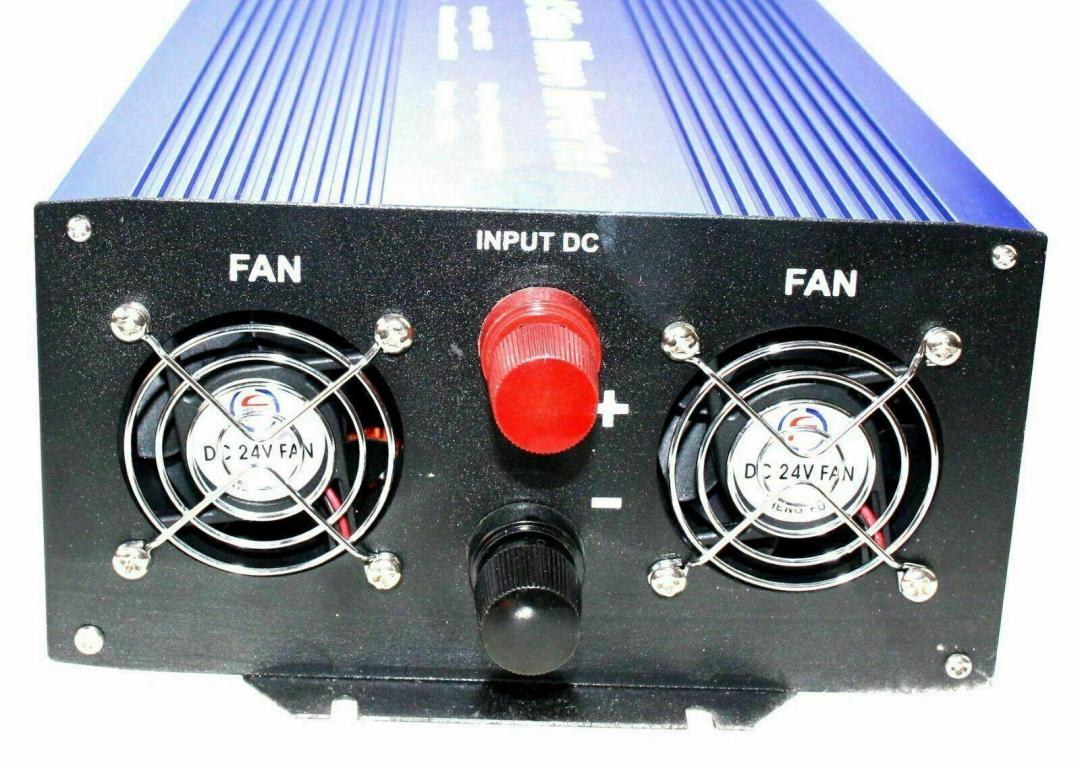

Installed cooling fan

Yes

Input(V)&output(Watt) LED Meter

Standard accessories

One set of red and black cables with brass terminals,

A user manual: please note inverters rated more than 600W do not come with crocodile clips

Operation temperature

-20℃~40℃

Net Weight(incl. accessories)

5.5kgs

Product Dimension

48*19.5*9.5cm

CONTENTS IN BOX:

3000W inverter

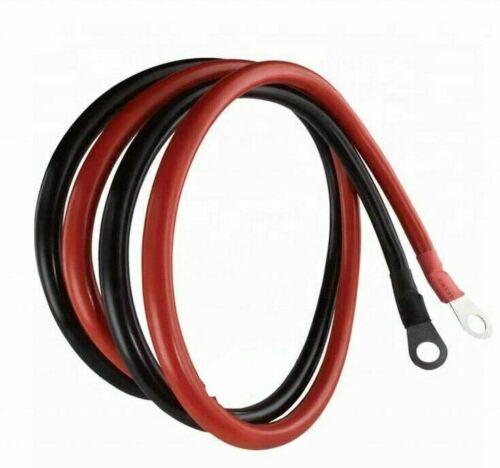

DC battery cables

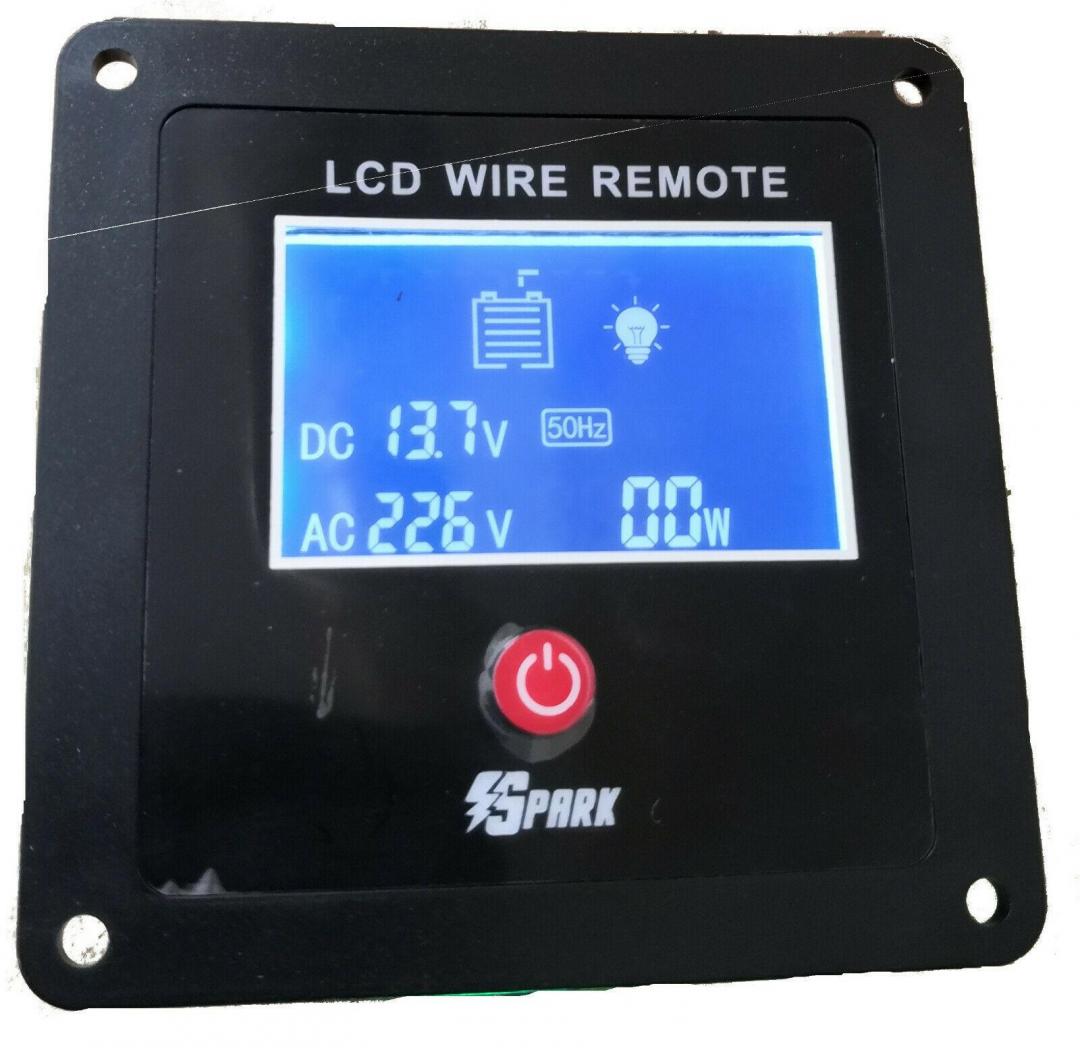

Remote LCD with 5 meter cable

Manual
